Full Range Of Thermal Conductive Pad
Premium Thermally Conductive Pad Selection Guide (35, 50W/m.k)
Features and Benefits:
◇ 35 and 50 W/mk Outstanding Thermal Conductivity
◇ Carbon Fiber Filled,High Stability and Suitable For Extreme Enviroment
◇ Non- tacky and good rebound for easy applicaiton
Typical Properties of Premium Thermal Pads | |||||||
Properties | Units | AL20 | AL50 | Test Method | |||
Construction & Composition | — | Carbon Loaded Silicone | Carbon Loaded Silicone | — | |||
Color | — | Black | Black | Visual | |||
Thickness | mm | 0.50 to 3.0 | 0.30 to 3.0 | — | |||
Thickness Tolerance | +/-0.02mm | +/-0.02mm | — | ||||
Hardness | (Shore 00) | 20 | 50 | ASTM D2240 | |||
Density(g/cm) | — | 2.4 | 2.4 | ASTM D792 | |||
Continuous Use Temp | ℃ | 200 | EN344 | ||||
Breakdown Voltage | (AC kV/mm) | <0.1 | <0.1 | ASTM D149 | |||
Withstand Voltage | (AC kV/mm) | <0.1 | <0.1 | ASTM D149 | |||
Volume Impedance | (ohm-cm) | <500 | <500 | ASTM D257 | |||
Flame Rating | V 0 | V 0 | UL 94 | ||||
Specific Heat Capacity | — | 0.87 J/g-k | 0.87 J/g-k | ASTM D5470 | |||
Thermal Mass | — | 2088 kj/m3-k | 2088 kj/m3-k | ASTM D5470 | |||
Thermal Conductivity | W/m.k | 35 | 50 | ASTM D5470 |
Widely Used Thermal Conductive Pad Selection Guide (1.0~7.5 /m.k)
Features and Benefits:
-

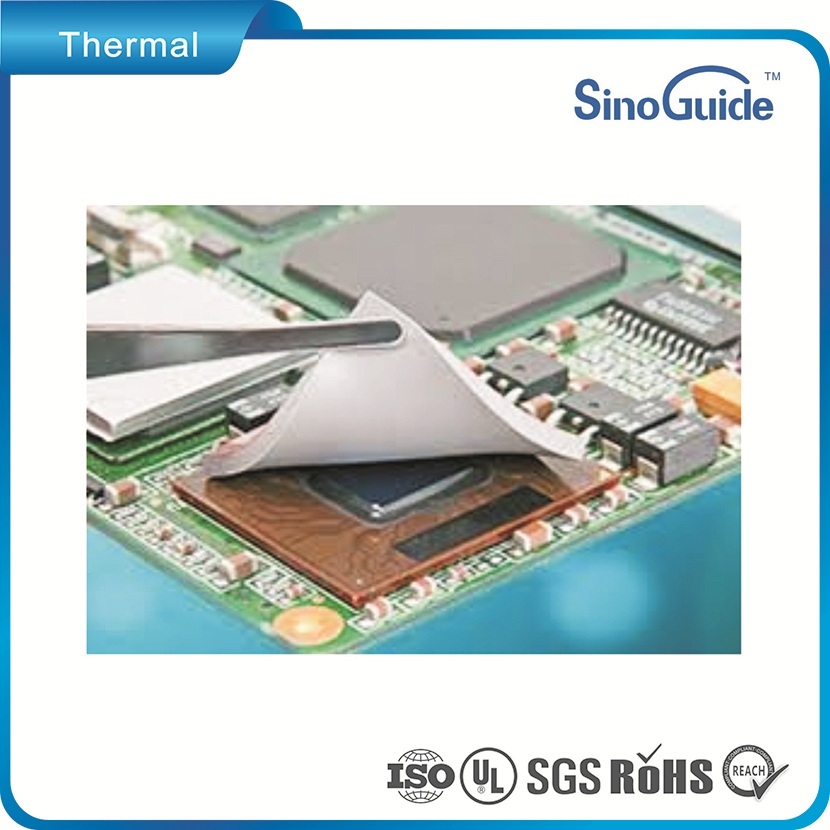

- ◇All thermal conductive pad/gap pad are used to fill in air gaps between heat-generating electronic component and heatsinks,metal housing or chassis for intimate contact over rough or uneven surface textures to eliminate air gaps and reduce thermal resistance with high compliance.
- ◇All our thermal pad series materials is very cost-effective materials which is made through advanced manufacturing process and with meeting the requirement of UL 94 V0 , RoHs and Reach compliance.
Typical Application
-
- – Be required to be used btw heat-generating electronic components such as semiconductor, IC, CPU.MOS and heatsink/housing
-
- – ECU, Telecom device, wireless Hub, power supply, converter/inverter, Battery etc.
-
- – Cooling or thermal Module, in all applications where a metal housing is used as heatsink.
Typical Properties of 1.0-7.5W/m.k Thermal Gap Pad | ||||||||||
Properties | Units | TCP100 | TCP150 | TCP200 | TCP300 | TCP500 | TCP600 | TCP800 | TCP110U | |
Color | — | Gray | Black | Dark Gray | Blue | Pink~Violet | Light Blue | Violet | pink/white | |
Reinforcement Carrier | — | — | — | — | — | — | — | — | Fiberglass | |
Thickness Range | mm | 0.25~15 | 0.25~15 | 0.25~15 | 0.25~15 | 0.25~15 | 0.3~10 | 1.0~10 | 0.5~10 | |
natural tacky | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | |
Hardness | Shore C | 25,35 | 15,25,35 | 15,25,35 | 25,35 | 30 | 30 | 50 | 5, 15 | |
Density | g/cc | 1.8 | 2.2 | 2.4 | 2.6 | 3 | 3.6 | 3.8 | 2.0 | |
Continuous Use Temp | ℃ | -40 to 200 | ||||||||
ELECTRICAL | ||||||||||
Breakdown Voltage | Kv/mm | ≥9 | ≥9 | ≥9 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | ≥6.0 | |
Volume Impedance | ohm-cm | ≥4×1012 | ≥5×1012 | ≥3.6×1013 | ≥1.1X1014 | ≥1.1X10 14 | ≥6.5X1010 | ≥6.5×1010 | ≥6.2X1015 | |
Dielectric Constant | 1MHz | 5.27 | 5.2 | 6 | 6.8 | 6.6 | 6.5 | 6.8 | 5.5 | |
Flame Rating | — | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | V-0 | |
THERMAL | ||||||||||
Thermal Conductivity | W/m.k | 1.0 | 1.5 | 2.0 | 3.0 | 5.0 | 6.0 | 8.0 | 1.1 |
Contact SinoGuide for Thermal Gap Pads/Sheets, Thermal Pads, Thermal Interface Pads
